York Model CZE



  • Matching air handlers are available for upflow, downflow and horizontal left or right applications to provide a complete system.
  • Electric heaters are available if required. Add-on coils are available for use with upflow, downflow or horizontal furnaces. Field installed accessories are available as needed.
  • Superior Coil Protection - A stamped decorative metal coil guard completely protects coil from debris and other large damaging material while a polymer mesh further protects the coil against smaller particles.
  • Protected Compressors - Each compressor is protected against high and low pressure as well as excessive temperature. This is accomplished by the simultaneous operation of high pressure relief valve and temperature sensors which protect the compressor if undesirable conditions occur. A factory installed liquid line filter drier further protects the compressor.
  • Environmentally Friendly Refrigerant - Next generation refrigeration R-410A delivers environmentally friendly performance with zero ozone depletion.
  • Durable Finish - Automotive quality finish provides the ultimate protection from harmful U.V. rays as well as rust creep ensuring long-lasting high quality appearance. A powder-paint topcoat is applied over baked-on primer, using a galvanized, zinc coated steel base material. The result is a finish that has been proved in testing to provide 33% greater durability than conventional powder-coat finishes.
  • Lower-Installed Cost - Designed to provide enhanced installability by featuring a slide-down control compartment allowing easy access to control components along with angled service valves to reduce overall installation time and cost.







York Model CZB



  • High energy efficiency of 13 SEER
  • The CZB Series condensing unit is the outdoor part of a versatile air conditioning system. It is designed to be custom matched with one of our complete line of evaporator sections, each designed to serve a specific function.
  • 10-year compressor limited warranty
  • 5 year parts limited warranty

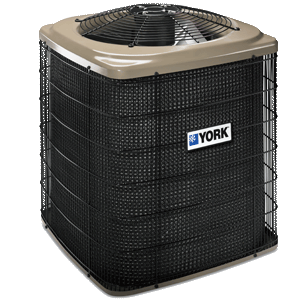

MicroChannel [mc]² Air Conditioner - TCGD (R410a)


The 13 SEER Series condensing unit is the outdoor part of a versatile system of air conditioning.  It is designed to be custom matches with one of UPG's complete line of evaporator sections, each designed to serve a specific function.



  • Tonnage Capacities
    1½ - 5 Tons
  • Efficiency
    13 SEER
  • Warranty
    Compressor - 5 Years
    Other parts - 5 Years

  • Special Benefits
    • Small Footprint - extremely lightweight with a compact footprint, it will be a perfect fit for any application
    • Quality Condenser Coils - The coil is constructed of aluminum microchannel tubing and enhanced aluminum fins for increased efficiency and corrosion protection.
    • Coil Protection - Coils are protected from damage by a polymer mesh applied between the coil face, and a coated steel coil guard.
    • Protected Compressor - Compressors are internally protected against high pressure and temperature.  This is accomplished by the simultaneous operation of high pressure relief valve and a temperature sensor which protects the compressor if undesirable operating conditions occur.  A liquid line filter-drier further protects the compressor.
    • Durable Finish - The cabinet is made of pre-painted steel.  The pre-treated flat galvanized steel provides a better paint-to-steel bond, which resists corrosion and rust creep.  Special primer formulas and matted champagne finish insure less fading when exposed to sunlight.
    • Lower Installed Cost - Installation time and costs are reduced by easy power and control wiring connections.  The small base dimension means less space is required on the ground or roof.
    • Top Discharge - The warm air from the top mounted fan is blown away from the structure and any landscaping.  This allows compact location on multi-unit applications.
    • Low Operating Sound Level - The upward air flow carries the normal operating noise away from the living area.  The rigid top panel effectively isolates any motor sound.  Isolator mounted compressor and the condenser coil muffle the normal fan motor and compressor operating sounds.
    • Low Maintenance - Long life permanently lubricated motor-bearings need no annual servicing.
    • Easy Service Access - Fully exposed refrigerant connections and a single panel covering the electrical controls make for easy servicing of the unit.
    • Secured Service Valves - Secured re-usable service valves are provided on both the liquid and vapor sweat connections for ease of evacuating and charging.
    • U.L. and C.U.L Listed - Approved for outdoor application.Certified in accordance with the Unitary Small Equipment certification program, which is based on ARI Standard 210/240.
