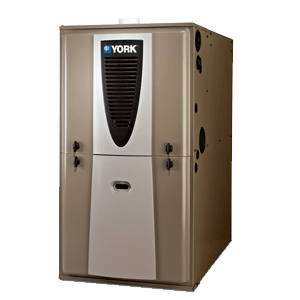

York Model YP9C



Up to 98% AFUE Modulating ECM NG33 Gas Furnace (YP9C)
These compact units employ induced combustion, reliable hot surface ignition and high heat transfer aluminized tubular heat exchangers. The units are factory shipped for installation in upflow or horizontal applications and may be converted for downflow applications.


These furnaces are designed for residential installation in a basement, closet, alcove, attic, recreation room or garage and are also ideal for commercial applications. All units are factory assembled, wired and tested to assure safe dependable and economical installation and operation.



  • Tonnage Capacities
    60 - 120 MBH
  • Efficiency
    Up to 98% AFUE
  • Warranty
    Heat Exchanger - Lifetime
    Other parts - 5 Years
  • Special Benefits
    • Compact 33” Height and Standard Cabinet Widths
    • Multi-Position Design With Minimal Conversion Requirements
    • Airflow Leakage Rate of Less Than 1% of Total Airflow @ 1” ESP
    • ECM Variable-Speed Motor with Large, Quiet Blower
    • Fully-Supported, Slide-Out Blower Assembly for Easy Service Access
    • High-Level Self-Diagnostic Controls With Fault Codes
    • Sharp Edges Have Been Eliminated By Folding and Flattening the Sheet Metal
    • Fully-Gasketed, Independent Access Doors With View Ports and Attractive Retail Appearance
    • External Air Filters (Not Included) Provide Flexibility for IAQ Needs
    • Patent-Pending Condensate Management System Eliminates the Need for External Condensate Traps







York Model YM9M



97% AFUE Modulating PSC NG33 Gas Furnace (YM9M)
These compact units employ induced combustion, reliable hot surface ignition and high heat transfer aluminized tubular heat exchangers. The units are factory shipped for installation in upflow or horizontal applications and may be converted for downflow applications.


These furnaces are designed for residential installation in a basement, closet, alcove, attic, recreation room or garage and are also ideal for commercial applications. All units are factory assembled, wired and tested to assure safe dependable and economical installation and operation.



  • Tonnage Capacities
    60 - 120 MBH
  • Efficiency
    97% AFUE
  • Warranty
    Heat Exchanger - Lifetime
    Other parts - 5 Years
  • Special Benefits
    • Compact 33” Height and Standard Cabinet Widths
    • Multi-Position Design With Minimal Conversion Requirements
    • Airflow Leakage Rate of Less Than 1% of Total Airflow @ 1” ESP
    • PSC Four-Speed Direct Drive Motor with Large, Quiet Blower
    • Fully-Supported, Slide-Out Blower Assembly for Easy Service Access
    • High-Level Self-Diagnostic Controls With Fault Codes
    • Sharp Edges Have Been Eliminated By Folding and Flattening the Sheet Metal
    • Fully-Gasketed, Independent Access Doors With View Ports and Attractive Retail Appearance
    • External Air Filters (Not Included) Provide Flexibility for IAQ Needs
    • Patent-Pending Condensate Management System Eliminates the Need for External Condensate Traps

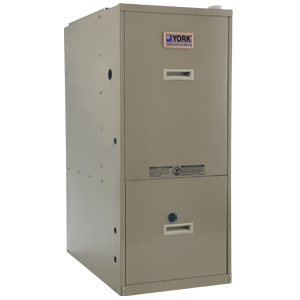

York Affinity GY9F-UP



GY9F 95% Upflow Gas Furnace
These Category IV, highly efficient, compact, condensing type furnaces are designed for residential and commercial installations in a basement, closet, alcove, recreation room or garage where the ambient temperature is above 32 deg F., or higher.



They may be either side wall or thru-roof vented using approved plastic type combustion air and vent piping.  All units are factory assembled, wired and tested to assure dependable and economical installation and operation.



  • Tonnage Capacities
    48 - 96 MBH

  • Efficiency
    95% AFUE

  • Warranty
    Heat Exchanger - Lifetime
    Other parts - 5 Years

  • Special Benefits

    • Electronic Hot Surface Ignition saves fuel cost with increased dependability and reliability
    • Compact, easy to install, ideal height 40" cabinet
    • Built-in, high level self diagnostics with fault code display
    • 100% shut off main gas valve for extra safety
    • Hi-tech tubular aluminized steel primary heat exchanger
    • Secondary (condensing) heat exchanger of 29-4C high-grade stainless steel
    • Integrated control module for reliable, economical operation
    • Blower-off delay for cooling SEER improvement
    • Easy to connect power/control wiring
    • Low unit amp requirment for easy replacement application
    • May be installed as either two-pipe (sealed combustion) or single pipe vent (using indoor combustion air)
    • Top intake & vent connection allows installation in narrow locations
    • Induced combustion system with inshot main burners for quiet, efficient operation
    • No special vent termination kit required
    • PSC 4-speed, direct drive motor with large, quiet blower
    • 24V, 40VA control transformer and blower relay supplied for add-on cooling
    • Timed on, adjustable off blower capability for maximum comfort
    • Solid removable bottom panel allows easy application
    • Easy access from front of unit for cleaning, maintenance or service
    • Protection from intake, exhaust or condensate blockage
